High Refresh Rate 3840HZ P1.5 P1.8 P2mm Indoor Fixed Installation LED Fixed LED Screen For Full Color Broadcasting
Gspark Series LED Display:
The Gspark Series LED Display stands out as a cutting-edge solution for indoor visual applications, combining innovative design with exceptional performance. One of its standout features is the magnetic module design, enabling full front maintenance. This user-friendly feature simplifies installation and upkeep, reducing downtime and operational costs.

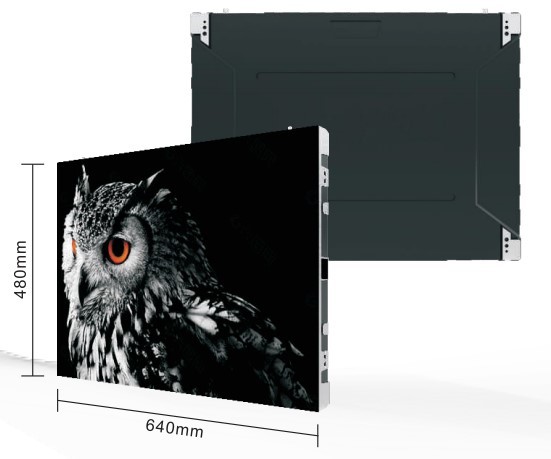

With a standard size of 640*480mm and a 4:3 aspect ratio, the Gspark Series offers a versatile display solution that fits seamlessly into various indoor environments. Despite its robust functionality, the product is remarkably lightweight, weighing only 7.8Kg per unit. This makes it easy to handle and install, even in complex setups.
The Gspark Series boasts a wide range of pixel pitch options, including P1.25mm, P1.53mm, and P1.82mm, ensuring high-definition display quality tailored to diverse needs. Whether for detailed data visualization or vibrant multimedia presentations, the series delivers stunning clarity and color accuracy.
Ideal for wall-mounted installations, the Gspark Series is the go-to choice for indoor LED display screens. Its applications span across command centers, monitoring hubs, conference rooms, lecture halls, and exhibition spaces, where reliability and visual impact are paramount. By combining advanced technology with practical design, the Gspark Series redefines indoor LED displays, setting a new standard for performance and versatility.
| Product | P1.2 | P1.5 | P1.86 | P2 |
| Pitch | 1.25 | 1.538mm | 1.86mm | 2mm |
| Density(pixels/m²) | 640000 | 422756 | 288906 | 250000 |
| LED Type | SMD1010 | SMD1212 | SMD1515 | SMD1515 |
| Brightness | 600nits | 600nits | 700nits | 700nits |
| Scan Method | 1/64 | 1/52 | 1/43 | 1/40 |
| Panel Size | 640×480mm |
| Module Size | 320×160mm |
| Panel Material | Die-casting Aluminum |
| Panel Weight | 7 kg |
| Protection Level | IP34 |
| Maintenance | Full Front Service |
| Max Power Consumption | 450W/㎡ | 450W/㎡ | 450W/㎡ | 450W/㎡ |
| Average Power Consumption | 150W/㎡ | 150W/㎡ | 150W/㎡ | 150W/㎡ |
| Refresh Rate | 3840Hz |
| Grey Scale | 13~16bit |
| Viewing Angle | H160°,V160° |
| Voltage | AC100~240V(50-60Hz) |
| Working Temperature | -20℃to 60℃ |
| Working Humidity | 10%-90%RH |
| Color Temperature | 3000-9500K |
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO |
